Patterns coming along

Standard

Dave dropped round with one half of the patterns to show us the progress. Not far off being finished, the fillets, radii and draught angles are going in ok. The timing cover needs a second coat of paint and the main casing a full paint, but another week or two and they’ll be ready to take to the foundry.

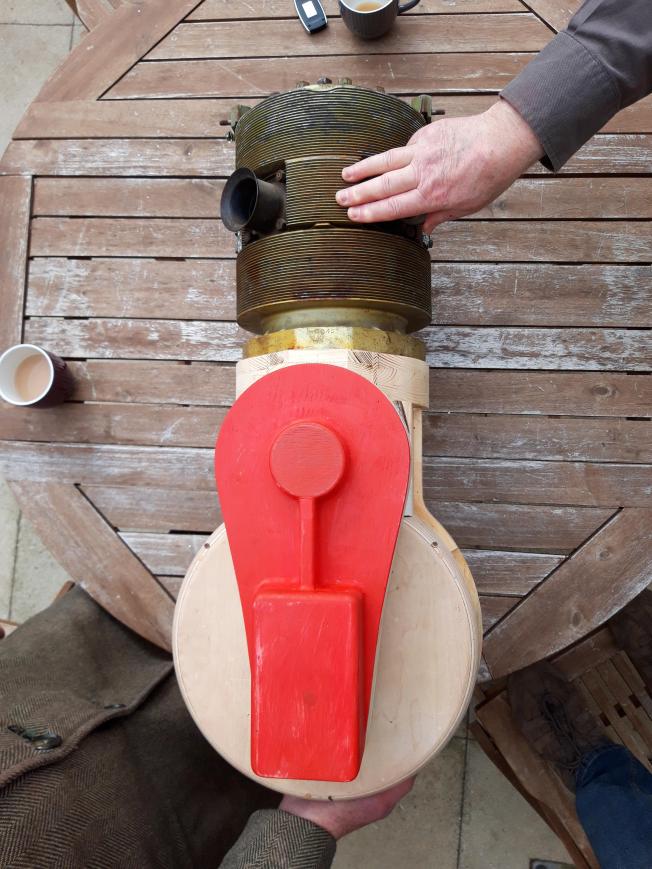

I took the opportunity to pair them up with a barrel and for the first time the final dimensions are apparent. Bit of a lump but I can make it work. If the casting isn’t too pricy I’ll have two sets cast, and use the spare set and barrel for dimensioning the frame. The frame builders will appreciate a full sized engine to work with.

With all this activity going on, I need to start thinking about ignition and a carb. Neither of these are particularly challenging, I just haven’t put a great deal of thought in just yet.

About Sophie Whiptank - aka Bart

I'm just a bloke doing some stuff, the more interesting bits I post on my blog. Scroll down far enough and you'll see me riding from Melbourne Australia to Birmingham, England in 2014. But now I'm working on another project, a single cylinder motorbike engine at 2750cc!
